Fixed Core “J” Tip
Guidewires

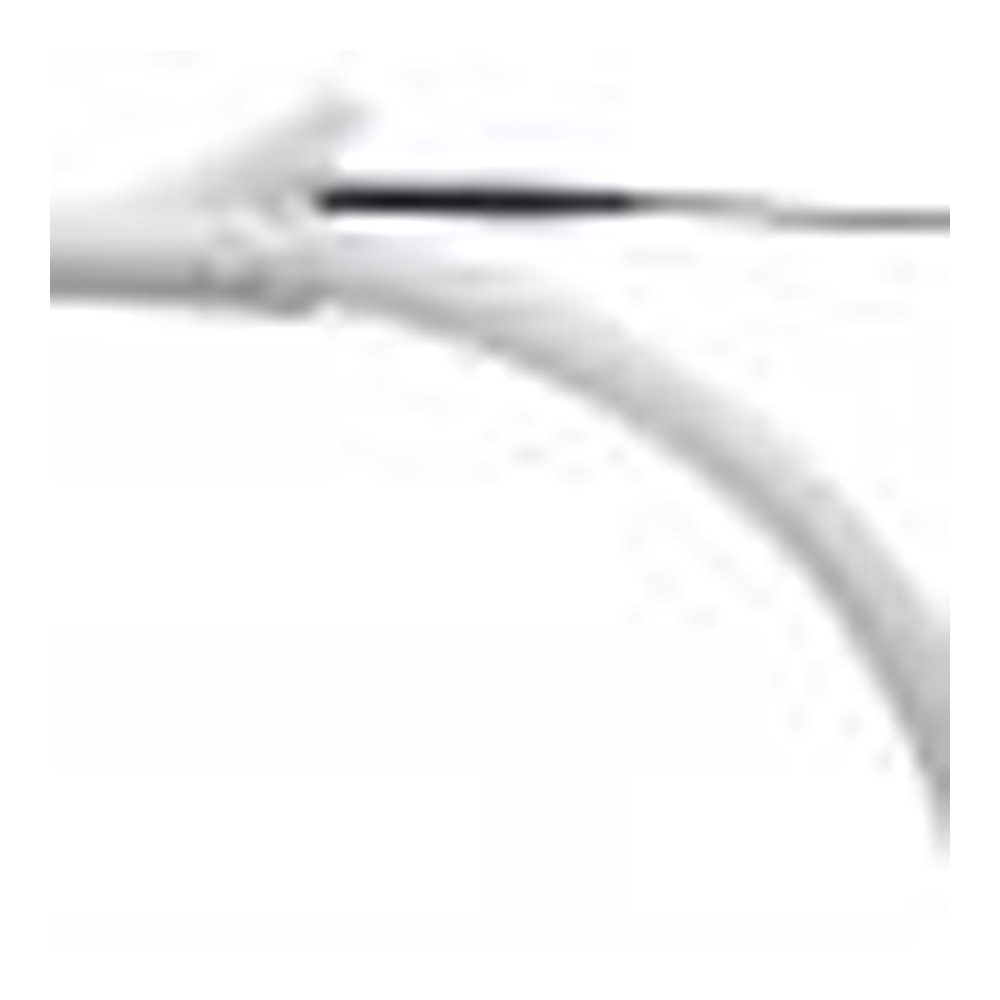

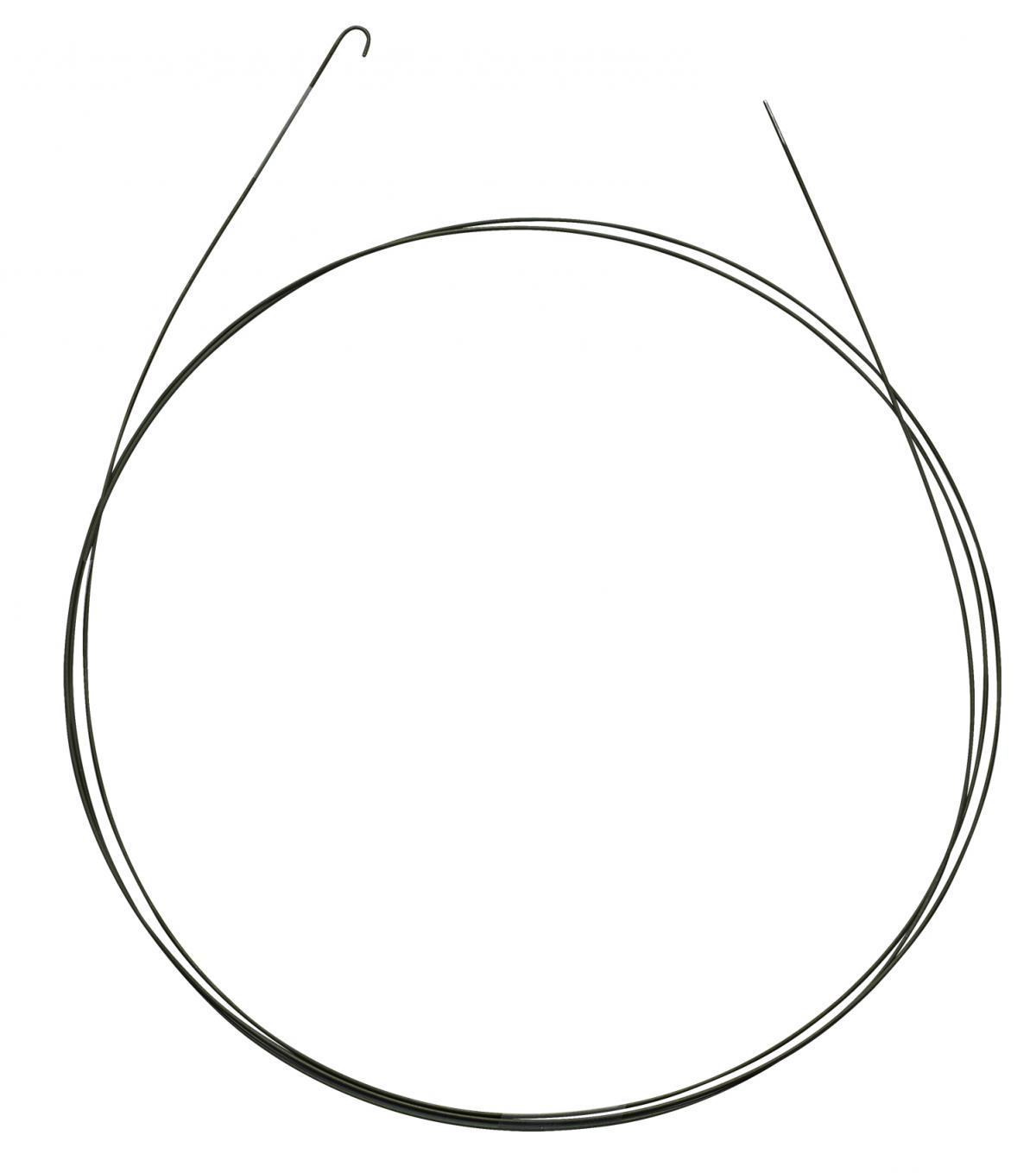

The Fixed Core “J” Tip Guidewires are PTFE coated and stainless steel. They are available in varied tip features and curve radius attributes.
- Each needle has numerically ordered centimeter markings on the outer cannula to provide reference for depth placement
- Needles feature an adjustable needle stop which allows the user to restrict forward movement, localizing the needle tip to the biopsy site
- Color coded stylet hubs indicate gauge size of needles
- Available in a variety of gauge sizes and centimeter lengths
- Available with an echogenic tip on the outer cannula to promote accurate placement under ultrasound guidance
Catalog Number | Product Type | Diameter | Length | Units Per Box | Tip Curve Radius | Tip Feature |
---|---|---|---|---|---|---|
388282 | PTFE Coated Stainless Steel | .035in | 150cm | 10 | 3mm | Classic |
388284 | PTFE Coated Stainless Steel | .038in | 150cm | 10 | 3mm | Classic |
390186 | PTFE Coated Stainless Steel | .035in | 175cm | 10 | 3mm | |
390282 | PTFE Coated Stainless Steel | .035in | 150cm | 10 | 3mm | XTB |
390284 | PTFE Coated Stainless Steel | .038in | 150cm | 10 | 3mm | XTB |
393182 | PTFE Coated Stainless Steel | .035in | 150cm | 10 | 3mm | Z-Tip |
393184 | PTFE Coated Stainless Steel | .038in | 150cm | 10 | 3mm | Z-Tip |
393186 | PTFE Coated Stainless Steel | .035in | 175cm | 10 | 3mm | Z-Tip |
393187 | PTFE Coated Stainless Steel | .038in | 175cm | 10 | 3mm | Z-Tip |
393282 | PTFE Coated Stainless Steel | .035in | 150cm | 10 | 3mm | Flexible |
395282 | PTFE Coated Stainless Steel | .032in | 150cm | 10 | 3mm | |
395284 | PTFE Coated Stainless Steel | .035in | 150cm | 10 | 3mm | |
395523 | PTFE Coated Stainless Steel | .021in | 150cm | 10 | 3mm | |
395787 | PTFE Coated Stainless Steel | .035in | 150cm | 10 | 1.5mm | |
395919 | PTFE Coated Stainless Steel | .035in | 150cm | 10 | Straight and 3mm | Double Ended |
395998 | PTFE Coated Stainless Steel | .035in | 50cm | 10 | Straight and 3mm | Double Ended |
395559 | PTFE Coated Stainless Steel | .025in | 150cm | 10 | 3mm | |
395600 | PTFE Coated Stainless Steel | .032in | 150cm | 10 | 3mm | |
395585 | Exchange Wires – PTFE Coated | .025in | 150cm | 10 | 3mm | |
395722 | Exchange Wires – PTFE Coated | .035in | 200cm | 10 | 3mm | |
395794 | Exchange Wires – PTFE Coated | .035in | 260cm | 10 | 3mm |
Not all SKUs available in every region
