Intara™
Introducer Sheath

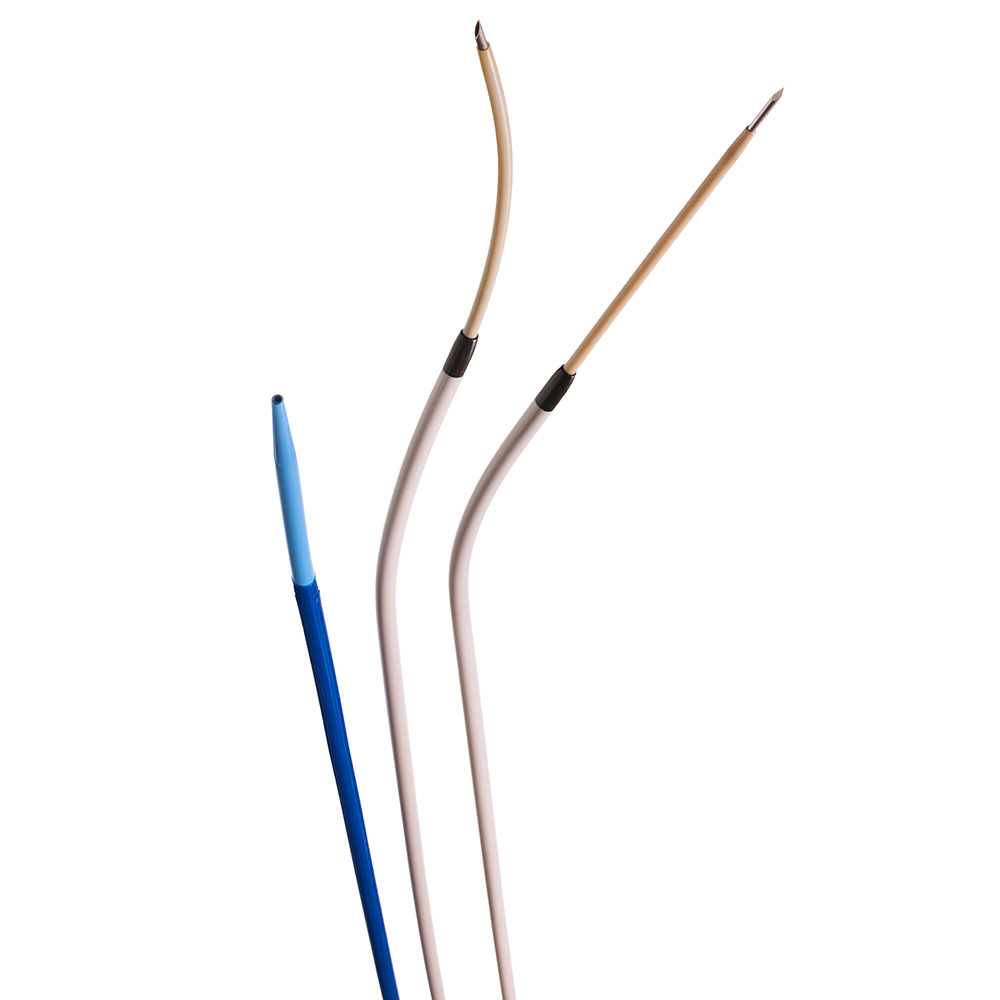

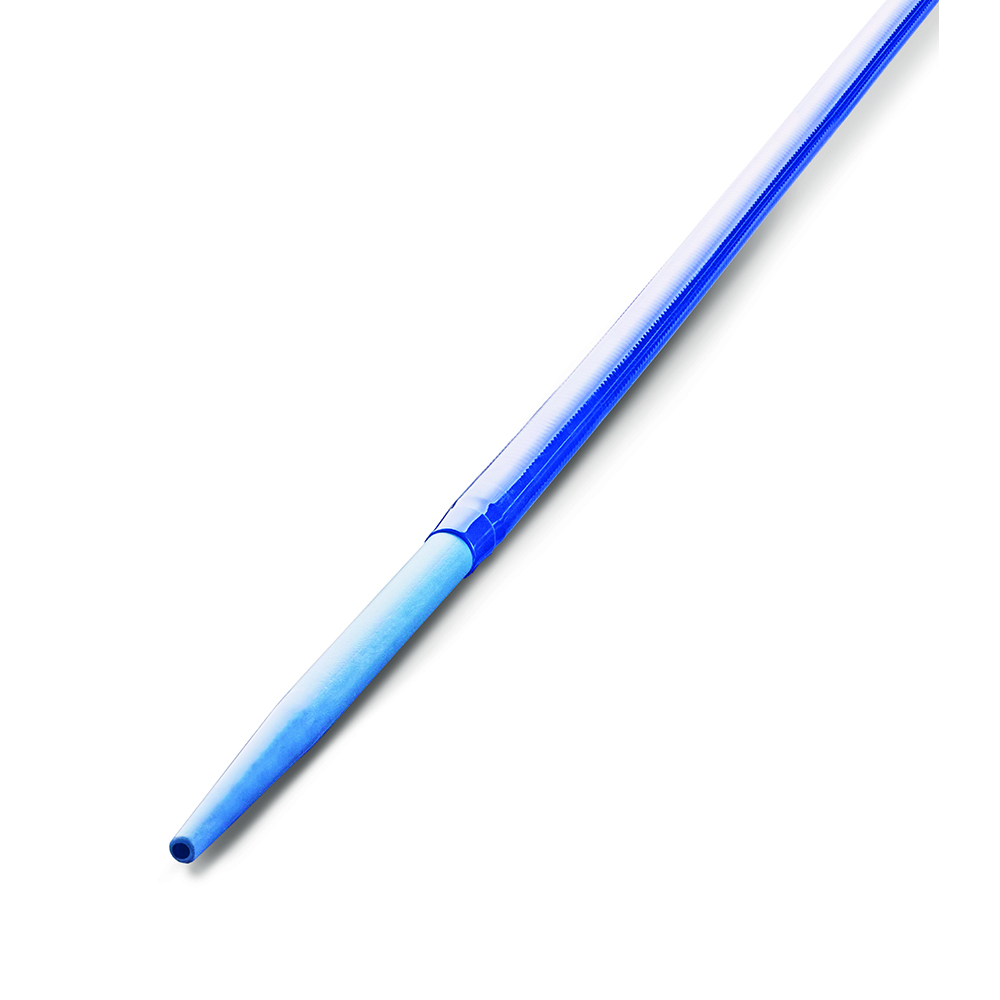

Designed with kink resistance and enhanced visibility, the Intara™ Introducer Sheath offers a robust pathway for introducing, navigating, and delivering therapeutic or diagnostic devices into the vasculature.
The Intara Introducer Sheath supports the TLAB Liver Biopsy System, Scorpion® and Traveler™ Portal Vein Access Sets, and TIPS-related stents, among other interventional devices.
- Integrated side port with stopcock for fluid injection or aspiration
- Spring-tempered, coil-reinforced sheath provides flexibility and kink resistance
- Dual hub connection secures the sheath with the dilator
- Embedded radiopaque marker band enhances visualization under imaging
- Hub compatibility with components up to 13F
- Luer connection for leak-free syringe attachment
Intara™ Introducer Sheath is indicated for introduction of therapeutic or diagnostic devices into the vasculature, excluding coronary and neuro vasculature.
Catalog Number | Sheath Size | Sheath Working Length | Sheath Overall Length | Sheath Diameter | Dilator Size | Dilator Working Length | Dilator Diameter |
---|---|---|---|---|---|---|---|
ISD10040 | 10F | 41.5cm | 45cm | 3.4mm ID | 10F | 49cm | 1.1mm ID / 3.3mm OD |
Not all SKUs available in every region
